2026 Mazda CX-90 Plug-In Hybrid near Spartanburg, SC

The 2026 Mazda CX-90 Plug-In Hybrid is engineered around the e-SKYACTIV PHEV system, which integrates a 2.5-liter inline 4-cylinder gasoline engine with a high-capacity electric motor and lithium-ion battery. The combined system produces up to 323 horsepower with premium unleaded fuel recommended and delivers up to 369 lb-ft of torque. The gasoline engine and electric motor operate through a SKYACTIV-Drive 8-speed automatic transmission with manual-shift mode. This transmission design eliminates a traditional torque converter and incorporates a multi-plate clutch system to optimize power transfer efficiency and responsiveness.

The electric motor is rated at up to 173 horsepower and contributes immediate torque delivery during acceleration. The lithium-ion battery operates at 355 volts and provides a total capacity of 17.8 kWh. The vehicle includes a 12V, 1.4 kW starter system integrated with the electrified powertrain architecture. Direct coil-on-plug electronic ignition and electronically controlled fuel injection manage combustion efficiency. The compression ratio for the gasoline engine is 13.0, and the engine block and cylinder head are constructed from aluminum alloy. Emission regulation for the PHEV variant is certified to SULEV30 standards.

Charging Capability and Electrical Specifications

The 2026 Mazda CX-90 Plug-In Hybrid supports both Level 1 and Level 2 charging. Using a 120V, 15-amp Level 1 outlet, charging from 0 to 100 percent state of charge requires approximately 11 hours under standard conditions. With a 240V, 30-amp Level 2 charging source, charging from 0 to 100 percent requires approximately 2 hours and 20 minutes. Charging from 20 to 80 percent state of charge using Level 2 power requires approximately 1 hour and 30 minutes. Level 3 DC fast charging is not supported for this configuration.

Select trims include a 1500W charging outlet integrated into the vehicle electrical system, providing additional external power capability. The battery pack is liquid-cooled and positioned beneath the floor structure to preserve interior volume and maintain a low center of gravity. Motor and generator output is rated at 68 kW according to EPA measurement. The integrated energy management system coordinates power delivery between the gasoline engine and electric motor based on driver demand and selected drive mode.

Disclaimer: Level 2 AC 240V at 30 amps charger. General conditions: State of charge (SOC) in the meter from 20% to 80%, battery temperature at 75° F. Charging times will vary based on charger type, vehicle and battery condition, temperature, and other factors. Actual results will vary. Please see your Owner's Manual for further details.

Efficiency Ratings and Driving Range

EPA-estimated fuel economy for the 2026 Mazda CX-90 Plug-In Hybrid is rated at 56 MPGe combined when operating in electric plus gasoline mode. In gasoline-only operation, the vehicle achieves an EPA combined rating of 26 MPG. The all-electric driving range is approximately 26 miles under EPA testing conditions. Total driving range is approximately 490 to 500 miles, depending on operating conditions and fuel tank configuration.

The fuel tank capacity for the PHEV model is 18.5 gallons, or 70.0 liters. The vehicle is calibrated for premium unleaded fuel with a minimum octane rating of 91. Electric power consumption and regenerative braking functions are monitored and displayed through the instrument cluster interface. The system also tracks deceleration regeneration charge status and high-voltage battery temperature.

Disclaimer: EPA-estimated range includes both city and highway driving. EV Range is based on a full charge with electric-only driving. Range will vary based on vehicle and battery condition, temperature, driving habits and other factors. Use for comparison purposes only. Actual results will vary.

Intelligent Drive Modes and All-Wheel Control

The Mazda Intelligent Drive Select system includes Sport, Off-Road, and EV modes. On higher PHEV trims, Mi-Drive incorporates Sports, Off-Road, and Towing or EV configurations. EV mode enables electric-only propulsion under appropriate conditions. The Charge Mode button allows the gasoline engine to recharge the high-voltage battery during driving.

All PHEV models include standard i-Activ AWD® with predictive torque distribution. The drivetrain continuously monitors wheel speed, steering input, throttle position, and environmental data to manage traction. Kinematic Posture Control enhances cornering stability by subtly applying brake force to the inside rear wheel during lateral load transfer. Off-Road Traction Assist modulates throttle and braking for improved traction on uneven terrain. Hill Launch Assist and Hill Descent Control support controlled movement on inclines and declines.

The vehicle is equipped with Dynamic Stability Control, Traction Control System, and Trailer Stability Control. Maximum towing capacity is rated at 3,500 pounds for the PHEV configuration.

Chassis Construction and Suspension Geometry

The 2026 Mazda CX-90 Plug-In Hybrid is built on a unibody structure with ring reinforcement for rigidity. The platform accommodates seven-passenger seating in a 2-3-2 configuration, with optional second-row captain's chairs in select trims. The front suspension uses a double-wishbone design, while the rear suspension utilizes an independent multi-link system with a stabilizer bar. Steering is provided by an Electric Power Steering system with an overall steering ratio of 17.13. Steering wheel turns lock-to-lock measure approximately 3.3 revolutions.

Turning circle diameter is approximately 38.1 feet curb-to-curb and 41.2 feet wall-to-wall. Ground clearance measures approximately 8.0 inches with 19-inch wheels and 8.1 inches with 21-inch wheels. Front and rear track widths measure approximately 67.1 inches and 67.3 inches, respectively.

Exterior Engineering and Functional Design Elements

The vehicle rides on 21 x 9.5J aluminum alloy wheels with either silver metallic or machine-cut finishes depending on trim. Tires are sized at 275/45 R21 M plus S. A temporary spare tire T155/90D18 is included. The body incorporates a shark fin antenna, roof rails, a rear roof spoiler, and black or bright lower bumper treatments depending on the grade.

Lighting systems include LED headlights with auto-leveling, LED daytime running lights, LED taillights, and the available Adaptive Front-Lighting System. High Beam Control automatically adjusts headlamp intensity based on oncoming traffic. Rain-sensing windshield wipers and a windshield wiper de-icer are integrated for inclement conditions. Heated side mirrors are standard, with memory and tilt-in-reverse functions available on higher trims. A hands-free power rear liftgate with programmable height adjustment is included.

Overall length measures approximately 201.6 inches with the license plate holder and 200.8 inches without. Wheelbase measures 122.8 inches. Overall width is approximately 78.5 inches excluding mirrors. Height measures approximately 68.7 inches with the shark fin antenna.

Interior Space, Seating Systems, and Cargo Capacity

The 2026 Mazda CX-90 Plug-In Hybrid accommodates seven passengers. Standard seating configuration is 2-3-2, with optional second-row captain's chairs providing a 2-2-3 arrangement on select trims. Third-row seats are configured as 50-50 split fold-down in PHEV grades. Seat materials include leather or available Nappa leather without quilting. Heated front seats with three-level adjustment are standard, and heated second-row seats are included on higher trims. Ventilated front seats and ventilated second-row seats are available depending on grade.

Front seats provide 8-way power adjustment with lumbar support and two-position memory for the driver on equipped trims. Steering wheel tilt and telescopic adjustment may be mechanical or power-operated depending on trim. A heated steering wheel is included on upper grades.

Interior dimensions provide front headroom of approximately 39.7 inches without a moonroof and slightly reduced measurements with a moonroof. Second-row headroom measures approximately 39.3 inches, and third-row headroom measures approximately 36.9 inches. Front legroom measures approximately 41.7 inches, second-row legroom approximately 39.4 inches, and third-row legroom approximately 30.4 inches.

Cargo volume measures approximately 15.9 cubic feet behind the third row. With the third row folded, cargo capacity expands to approximately 40.8 cubic feet. Folding both second and third rows increases capacity to approximately 75.2 cubic feet. Rear tailgate opening width measures approximately 43.5 inches, and the opening height measures approximately 29.2 inches.

Digital Interface and Connectivity Systems

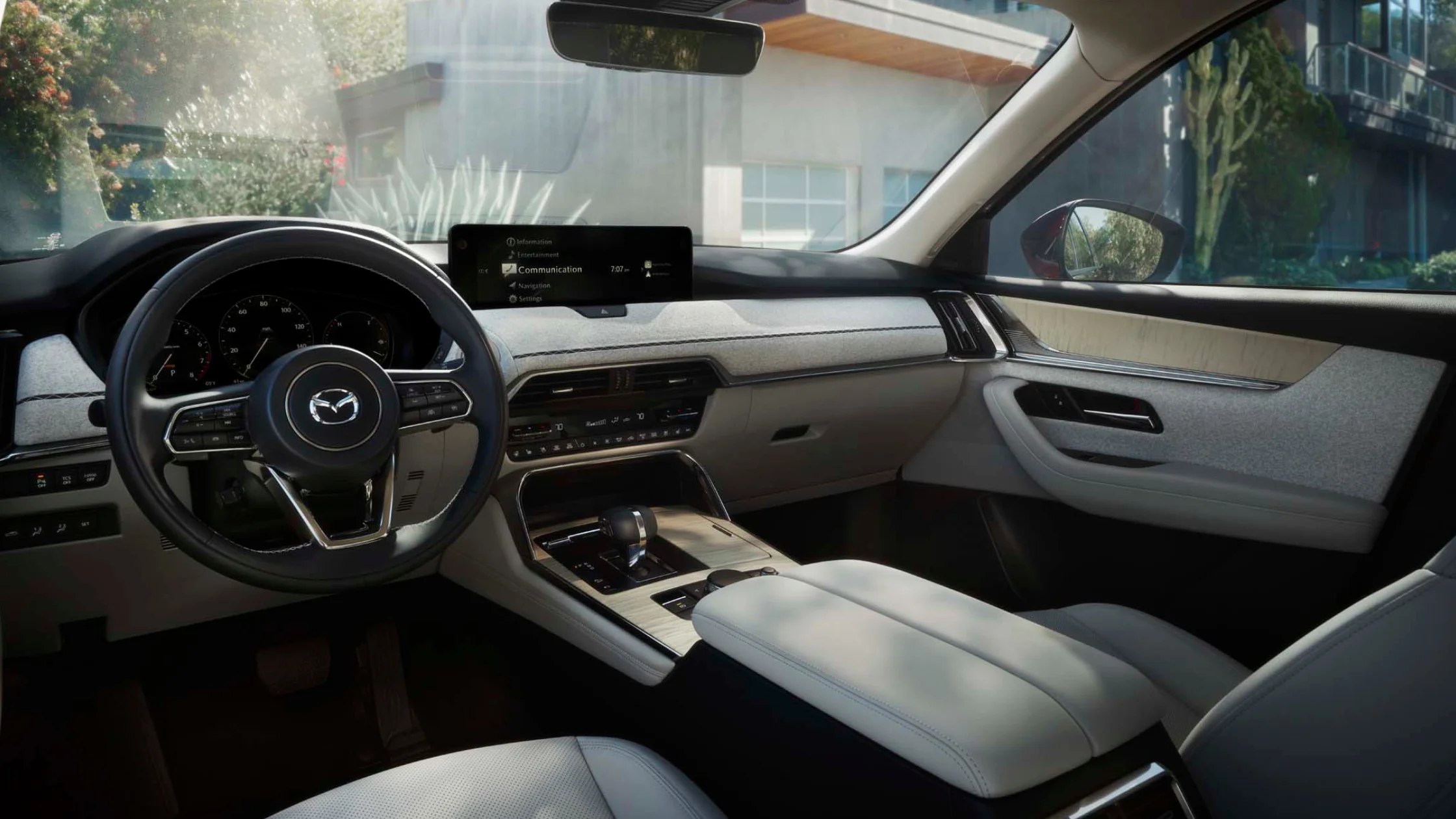

The instrument cluster includes a 12.3-inch fully digital display in PHEV trims. The center display measures 12.3 inches and integrates Mazda Connect™ functionality. The Active Driving Display projects critical driving data onto the windshield. A Multi-Function Commander Control knob allows centralized infotainment navigation.

Audio systems include an 8-speaker configuration on lower grades and a Bose® 12-speaker premium audio system on higher trims. SiriusXM® satellite radio with a three-month trial is included where available. Alexa Built-In functionality is standard. Mazda Connected Services provides remote services including remote charge control, remote climate control, remote door lock and unlock, vehicle health reports, push notifications, malfunction alerts, and recall notices.

Wireless phone charging is integrated into the center console. USB Type-C ports are distributed across all three rows, with up to six total ports depending on configuration. A 4G LTE Wi-Fi capability powered by AT&T supports connected functionality.

Comprehensive Active and Passive Safety Integration

The 2026 Mazda CX-90 Plug-In Hybrid includes a full suite of i-Activsense® driver assistance technologies. Standard features include Smart Brake Support with Automatic Emergency Braking, Smart Brake Support Front Crossing, and Smart Brake Support Rear with pedestrian detection on higher trims. Blind Spot Monitoring with Vehicle Exit Warning and Rear Cross Traffic Alert are standard.

Emergency Lane Keeping integrates Blind Spot Assist, Road Keep Assist, and Head-on Traffic Avoidance Assist. Lane Departure Warning and Lane-keep Assist provide steering correction support. Mazda Radar Cruise Control with Stop and Go includes Speed Limit Assist on equipped trims. Cruising and Traffic Support enhances low-speed highway operation.

Driver Attention Alert and Driver Monitoring systems assess driver behavior. Frontal, knee, curtain, and side impact airbags provide occupant protection. Front and rear parking sensors are included, along with Trailer Hitch View on higher trims. Secondary Collision Reduction mitigates post-impact movement.
