2025 Mazda CX-5 near Spartanburg, SC

The 2025 Mazda CX-5 offers a consistent all-wheel-drive layout across all trims, supported by a SKYACTIV-Drive 6-speed automatic transmission with manual shift mode and Sport mode. The available SKYACTIV-G® 2.5-liter 4-cylinder engine delivers 187 horsepower at 6,000 rpm and 186 lb-ft of torque at 4,000 rpm. This naturally aspirated engine features cylinder deactivation and i-STOP for improved efficiency, achieving an EPA-estimated 26 mpg city, 30 mpg highway, and 28 mpg combined.

For enhanced torque and horsepower, select models are equipped with the SKYACTIV-G® 2.5 Dynamic Pressure Turbo engine. This engine generates 227 horsepower with 87-octane fuel and 256 horsepower with 93-octane. Torque reaches 310 lb-ft at 2,000 rpm on regular fuel and 320 lb-ft at 2,500 rpm with premium. Fuel economy for turbocharged models is estimated at 22 mpg city, 27 mpg highway, and 24 mpg combined.

Disclaimer: Based on EPA estimates for 2025 Mazda CX-5 2.5 S Carbon Edition and Premium Plus, 26 city/30 highway/28 combined MPG. Cylinder Deactivation with i-Stop increases EPA-estimated MPG to 26 city/30 highway/28 combined starting in May 2025 production for 2025 Mazda CX-5 2.5 S Preferred. Before May 2025 production EPA-estimated 23 city/29 highway/25 combined MPG. 2025 Mazda CX-5 2.5 Turbo Signature shown, 22 city/27 highway/24 combined MPG. Actual results will vary.

All configurations incorporate Mazda Intelligent Drive Select, allowing the driver to engage Normal, Sport, or Off-road modes. A PTO damper is included to reduce drivetrain vibration. The braking system integrates ventilated front discs and solid rear discs, with dimensions increasing to 12.6 inches in the front for turbo models. Anti-lock brakes with electronic brakeforce distribution and brake assist come standard.

Structural Dimensions and Chassis Framework

The 2025 Mazda CX-5 is a unibody SUV constructed with Mazda's ring structure. It maintains a wheelbase of 106.2 inches and an overall length of 180.1 inches. Width without mirrors is 72.6 inches, expanding to 83.3 inches with mirrors extended. Height varies slightly by trim and ranges between 65.4 and 66.3 inches. Front and rear track widths remain uniform at 62.8 inches.

Ground clearance measures 7.6 inches on standard models and increases to 7.9 inches for turbo variants. The turning circle is 39.1 feet wall-to-wall, achieved through a rack-and-pinion electric power-assisted steering system with a steering ratio of 15.5:1. The steering wheel requires 2.7 turns lock-to-lock.

The front suspension is an independent MacPherson® strut design with coil springs and a stabilizer bar. The rear employs a multi-link setup, also with coil springs and a stabilizer bar. Wheel options include 17-inch and 19-inch aluminum alloy designs in Gray Metallic, Black Metallic, or Silver Metallic finishes. Tire dimensions are P225/65R17 or P225/55R19, with a temporary spare size at either T145/90D16 or T155/90D17 depending on the model.

Functional Exterior Components

All 2025 Mazda CX-5 models use LED headlights with auto on/off and daytime running functionality. Higher trims include adaptive front lighting and high beam control. A body-colored rear roof spoiler, shark fin antenna, and dual exhaust outlets with bright finishes are included throughout the lineup. Models with turbo engines receive a larger diameter exhaust outlet.

Side mirrors are power-adjustable with integrated LED turn signals and heating elements. Depending on the trim, these may be manually or automatically folding. Black or body-colored finishes are applied to side mirror housings and lower exterior moldings. Select trims also feature gloss black or gunmetal finishes on the grille and rocker panels.

Wiper systems include rain-sensing front wipers and rear intermittent wipers with washers. A windshield wiper de-icer is included on select trims. Rear privacy glass, LED license plate lighting, and a center high-mount brake light are standard. Exterior badging varies by trim and includes AWD, Turbo, and Signature identifiers.

Interior Features and Cabin Configuration

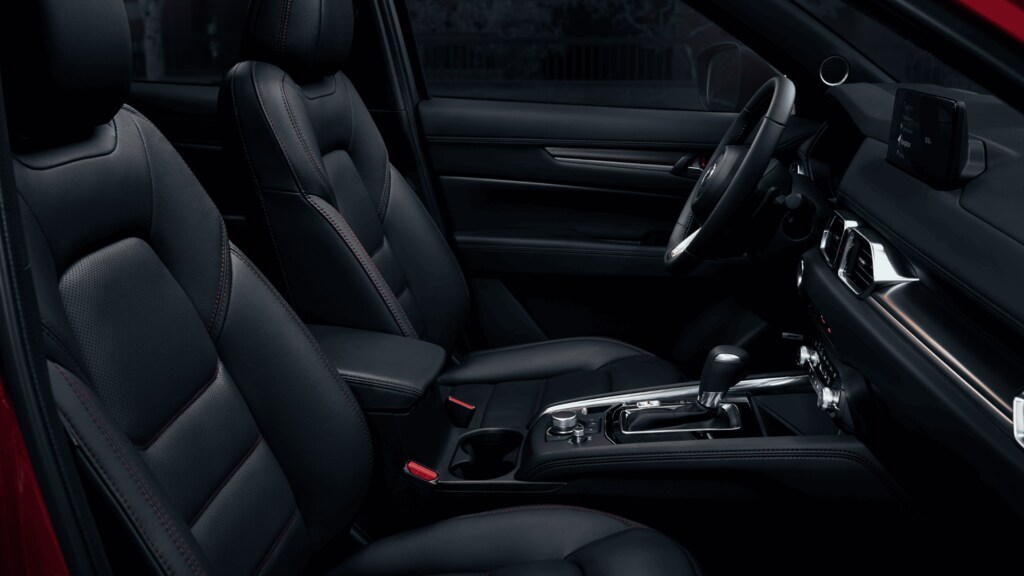

The 2025 Mazda CX-5 has seating for five with a 40/20/40 split rear seat that reclines and folds flat. Depending on the model, seat materials include cloth, leatherette, leather, Terracotta leather with synthetic suede inserts, or Caturra Brown Nappa leather. Front seat adjustments range from 6-way manual to 8-way power with memory and lumbar support. Heated front seats are standard on many trims, with rear heated seats and ventilated front seats included on upper levels.

Trim-specific interior elements include black, red, or terracotta contrast stitching, layered wood inserts, and various dashboard and door panel treatments. Headliners are available in black on select trims. Ambient lighting includes front and rear foot illumination, LED room lamps, and illuminated visor vanity mirrors.

The rear cargo area offers multiple levels with a height-adjustable luggage board. Cargo volume reaches 30.0 cubic feet with seats upright and up to 59.3 cubic feet with seats folded. Rear seat knee clearance is 2.7 inches. Total passenger volume is 103.6 cubic feet. Measurements for cargo dimensions vary depending on luggage board placement and seat configuration.

Infotainment and Communication Systems

A 10.25-inch full-color center display is standard, with touchscreen functionality for Apple CarPlay® and Android Auto™. Wireless integration is included on specific trims. The infotainment system uses Mazda Connect™ with multi-function commander control and voice-command features. Select trims provide navigation with off-road mapping and a three-year SiriusXM® Traffic and Travel Link subscription.

Audio configurations include four-speaker, six-speaker, and 10-speaker Bose® systems. The Bose® system incorporates Centerpoint® and AudioPilot technology. USB inputs include two Type-C ports in the front console and two Type-A ports in the rear. Bluetooth® hands-free and audio streaming is standard.

Additional features include Pandora, SMS text message audio delivery, and vehicle Wi-Fi. Remote services through Mazda Connected Services allow remote start, lock/unlock, and hazard light activation. Vehicle health reports, recall notifications, and 911 automatic dialing are also integrated.

Instrument Cluster and Driver Displays

Standard instrumentation includes a 7-inch TFT LCD display with readouts for speed, fuel economy, and trip data. An Active Driving Display projects information onto the windshield and is available with traffic sign recognition. All trims include a digital clock, tachometer, fuel gauge, and trip computer.

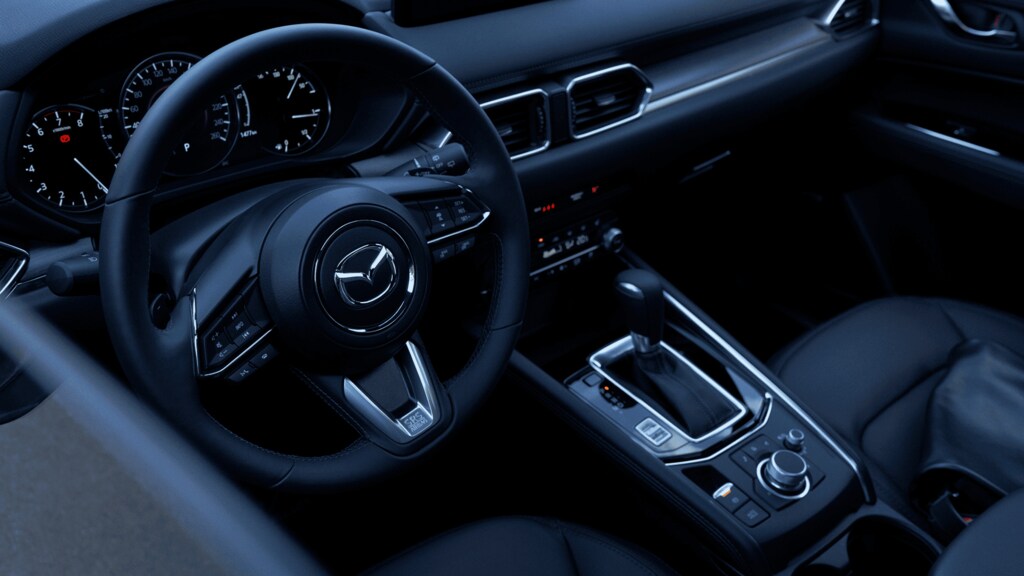

Controls for audio, phone, and cruise are mounted on a leather-wrapped steering wheel, with red or unique stitching available by trim. Paddle shifters are standard on turbo variants. The gear selector also features trim-specific stitching and materials.

Comprehensive Safety Architecture

The 2025 Mazda CX-5 incorporates a full range of i-Activsense safety features. These include Advanced Smart City Brake Support with pedestrian detection for both day and night. Blind Spot Monitoring, Rear Cross Traffic Alert, and Lane Departure Warning with Lane Keep Assist are included. Smart Brake Support, Rear Seat Alert, and a rearview camera are also standard.

Advanced systems available on higher trims include a 360-degree view monitor, front and rear parking sensors, Traffic Jam Assist, and Driver Attention Alert. Passive safety includes advanced dual front airbags, side-impact airbags, and side curtain airbags with rollover protection. Seatbelt pretensioners with force limiters are standard in all outboard positions. The LATCH system supports child safety seat installation.

Tire pressure monitoring and an engine immobilizer anti-theft system are also standard. Structural protection is enhanced through the body's ring-shaped reinforcement design. Emissions compliance aligns with T3B30/SULEV30 or T3B70/ULEV70 depending on the variant.

Schedule a Test Ride Today

Drivers can explore the full range of performance, technology, and safety features in the 2025 Mazda CX-5 by scheduling a test drive with McKinney Mazda near Spartanburg, SC. Experiencing the SKYACTIV engine options and the intelligent AWD system firsthand offers valuable insight into how this SUV performs across different conditions. The onboard technology, from Mazda Connect™ to advanced driver-assistance systems, supports both convenience and control. A test drive allows direct engagement with the driving dynamics, cabin layout, and feature configurations. Our team is ready to assist in identifying the right model based on your performance and functionality preferences.
